Un análisis de los usos de las gráficas en el cotidiano de la gente

The Matter at Hand

Several studies warn that mathematical knowledge is presented as labeled and polarized, and stands a hierarchy and continuity among science, teaching and daily practice (Lave, 1988). Some investigations consider the role that everyday mathematics (as in Anglo-Saxon tradition) plays in school practices, despite the negative connotations of the label "everyday". For this purpose, they claim that it is possible to analyze scholastic mathematics by bringing to the school setting: (a) the objects of study in everyday mathematics, (b) social organization aspects in non-scholar settings (for example: collaborative work), (c) discourse practices of work settings and/or (d) participation structures of everyday activities such as discussion, conversation or debate (Civil, 2002; Moschkovich, 2002). As can be appreciated in these cases, everyday seems to have a connotation of prior, and something that is non-scholar, but with the possibility of being used and formalized through education. Hence, it seems that school knowledge is a "natural" sequel of what students already knew. In other words, this means going from simple to complex, from informal to formal and from beliefs to scientific.

Now, some approaches consider everyday knowledge proper knowledge and not in terms of its condition of prior or erroneous. It is understood as Implicit theories or Alternative conceptions. Such theories or conceptions can be characterized as emotional experiences that people build around their reality or experiences (Rodrigo, 1997; Slater et al., 2018). These studies assume that being unaware of the nature of everyday knowledge results in its trivialization and devaluation in school settings. Such condition reflects inconsistencies in its consideration in the construction of school knowledge and its relationship with scientific knowledge (Arnay, 1997), as well as in its inclusion in learning experiences not related to students' previous experiences. For those who share these beliefs, everyday knowledge comes from a cognitive dimension which creates representations in specific settings. Consequently, they postulate an individual episodic construction of knowledge. These studies are guided by constructivist approaches to knowledge and the importance of the cognitive subject, so everyday life is only considered from a personal point of view.

Other types of investigations analyzed how mathematics lives in non-scholar settings. For example, the work of nurses or woodworkers, or when a scientific development is addressed in specific disciplines, or in daily activities (see the works of Hoyles et al., 2001; Lave, 1988; Nunes et al., 1993; Pozzi et al., 1998; Tuyub & Cantoral, 2012). These investigations do not focus on the learning of a specific mathematical concept, but on highlighting the importance of the setting and the different ways in which knowledge is set to work less visibly in certain situations. Their purpose is to characterize the nature of the mathematics used in non-scholar settings more locally, highlighting the characteristics of the human activity and the individuals as part of study groups that share actions, activities, and practices.

This review identifies everyday knowledge and its inclusion in the didactic system, which is synthesized in the social function conferred to that knowledge. It is important to establish that everyday knowledge should not only respond to cognitive aspects and focus on individuals, but it brings up its processes of construction and manifests itself collectively among people who do not seem to be taken into consideration. From this point of view, the problems concerning everyday knowledge go beyond pedagogical and formalization implications. It is a more thorough criticism of the model that supports the SMd related to (a) an object-centered perspective (Cantoral, 2013) that reproduces an opacity phenomenon of people's knowledge in scholastic mathematics (Cordero et al., 2015). This means that the SMd and its establishment obscure how people use their knowledge to deal with daily life situations that could have a social function different from those established in the school.

The discussion on everyday knowledge -considered as knowledge in use and related to the knowledge of people- implies an epistemological and ontological position in relation to phenomena associated to the teaching and learning of mathematics. This reasoning enhances a broader vision of different settings, to understand how mathematics is used in non-scholar situations, and the function everyday knowledge has in the teaching and learning processes in the school, so that it could be possible to comprehend school knowledge supported by the learner's reality (Cantoral, 2013). This approach assumes, from the beginning, that everyday life is a valid and genuine knowledge that coexists and relates to scholastic mathematical knowledge, but with a specific epistemology and a situated context related to the use of knowledge in a specific situation. Therefore, it is characterized as everyday knowledge because it expresses the obscured knowledge of people in scholastic mathematics (Zaldívar, 2014).

The former discussion is a turning point in the cognitive positions centered on individuality and the abilities of students as cognitive subjects (Radford, 2013). This means considering the users rather than avoiding the focus on the analysis of mathematical objects (MO) isolated from the situations that gave them sense and meaning. The MO are placed in a situated and social context; that is to say, as knowledge that emerges from the constant and reflexive exercise of certain social practices² (SP) which give rise to those objects and their relationships (Buendía & Cordero, 2005). This is what we call positioning in the social construction of mathematical knowledge (SCMK) from the socioepistemology theory (ST).

This positioning not only signifies a descentralizaron of the object (Cantoral, 2013), It also implies a methodological choice because recognizing those SP enriches the analysis of the phenomena associated with the relationships between mathematical knowledge and thinking, knowledge and culture³. Focusing on the SCMK enhances the discussion on the conditions of production of mathematical knowledge in non-scholar settings to understand and promote interventions and redesigns of the SMd. This redesign is focused on the functional aspects of knowledge to transform the didactical system (Cordero, 2008). The ST proposes the use of systemic and multiple approaches to deal with the didactic phenomena related to the development of mathematical thinking. It recognizes the integration of the epistemology of knowledge, its socio-cultural dimension, the cognitive processes associated, and the institutionalizing mechanisms in teaching, based on research studies (Cantoral & Farfán, 2013). Therefore, the research program of the ST allows for the relativism of the concepts and processes of mathematics because it accepts that knowledge operates in a situational way and attends to social functions that differ from the curricula. In brief, the ST recognizes the validity of every type of knowledge defined collectively and which exists in culture or society.

The goal of the following sections is to characterize the function of people's daily lives and their relationship with the construction of mathematical notions to build a reference framework which gives new meaning to those notions in scholastic mathematics.

Theoretical elements

The ST assumes that mathematical knowledge is constructed socially. So, its introduction to the didactic system compels to a series of transformations that affect its structure, as well as the relationships between teachers and students. It also must be recognized that mathematical knowledge is a tool used in different contexts, that is to say, that it "lives" through actions in human activity (Cantoral et al., 2018). In other words, that mathematics has meaning through its use (Cantoral, 2013). Such use shows the function of social practices while engaged in the social construction of knowledge. This social dimension reveals how individuals or communities relate to the object of study, and how it is resignified not only through its use, but also by the culture, meanings and shared procedures elaborated in specific situations under certain institutional procedures (Cordero, 2008; 2016).

Additionally, the works of Berger & Luckmann (1991) explain the reality of daily life and its associated process, such as institutionalization and socialization. According to these authors, daily life is the most visible and identifiable image of reality. Their central thesis is that reality is a social construction, so they focused on drawing the processes of socialization by which a body of knowledge becomes "reality". As a consequence, the authors divided daily life into sectors. On one end of the spectrum is daily life, seized by routines and maintained under similar conditions. On the other end is daily life presented as different types of problems that lead to maintenance crisis. Therefore, daily life is expressed in terms of routine, maintenance and its crisis, naturalness, practicality, transparency, a-systematically and accessibility. It has its own historical and cultural character because routines are maintained or preserved for some time as they develop or regress. In brief, these authors present an epistemology for the knowledge of daily life under institutional dimensions that can be established as a social construction mechanism based on a dialectic maintenance-crisis (see Figure 1).

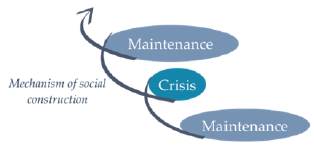

Figure 1: Mechanism for maintenance and crisis of routines

Source: Own elaboration

Based on a reinterpretation of the previous notions from the ST, and highlighting that everyday knowledge is a category that expresses functional everyday knowledge, it is considered that the dialectic maintenance-crisis procedure characterizes an epistemology for everyday life in terms of knowledge in specific situations. In this way, daily life refers to certain cultural forms of knowledge that were socially and historically present in different areas of human activity that are maintained in a specific situation but susceptible to transformation (Zaldívar, 2014).

Given the position assumed in this investigation, the ST postulates that human activity can be described in terms of social practices expressed in a minimum unit of analysis: the use of knowledge. From the results of Cordero (2008) and Cordero et al. (2010) the use of mathematical knowledge is characterized with reference to two dialectic elements: functionality (Fu) and form (Fo); what is done and how it is done, respectively. In brief, the use of knowledge expresses actions, explanations, significations, and executions of what is done in conjunction with how it is done, namely procedures and arguments in which the important thing is where it is used and under what institutional conditions. Functionality and form are a pair of theoretical elements in which the use of mathematical knowledge can be recognized and also express the development of the use in new situations. This emergence of development is named resignification.

The notion of resignification expresses the use of mathematical knowledge of groups and communities because the goal is to leave the object-centered perspective and focus on the Argumentations of the mathematical objects (Arg[MO]), which can be achieved with the intentional use of these objects under specific circumstances⁴.

Hence, it is possible to characterize the function of people's daily lives in three vectors: (1) an epistemology based on the social construction mechanism which is developed as maintenance and crisis argumentations, which has way through the intentional use of mathematics; (2) a sociocultural and institutional setting which is defined in a specific situation that presents functional mathematics, and (3) a construction process of resignification in terms of the development of argumentations and Fu-Fo (see Figure 2).

Figure 2: Model for the analysis of daily life of the citizen

Source: Own elaboration

Therefore, the purpose of this study is to show the argumentations and uses of knowledge obscured by the SMd, so that everyday knowledge could become an element to consider in its redesign. The following sections will show an example based on the use of graphs in a specific setting.

Methodological Considerations

Due to the social nature of this research, it was pertinent to expand the vision and consider an ideal setting that did not limit discussion about the group and their knowledge. Thus, a thematic workshop in a communicating science (CS) setting was selected to build the empirical evidence. Research recognizes the role of CS to raise dialog between science and not necessarily scientific people through socialization. It enables the presence of science in people's culture without any attempt to become a "substitute class" (Roqueplo, 1974).

Three axes justify the insertion in a CS scenario: the socialization of knowledge, scientific enculturation, and the not necessarily scientific population. The first element, socialization, refers to the fact that the dissemination of science plays an important political role in the development of science since it allows all people to make decisions within the powers of science. The second axis implies that being a participant in a communicating science scenario will not necessarily make people scientists, but it does achieve something, a certain presence of science in people's culture. Lastly, it is recognized that those attending this type of program are social actors immersed in a specific society and in continuous relationship with others. Put differently, they are historical subjects⁵ involved in extremely varied scenarios.

Thematic workshops were implemented to build the empirical evidence. The experimental tool considered was a situation named the spring. It focuses on the movement of a mass connected to a spring to enhance discussion on the conditions and elements, such as trends, involved in this situation, giving preference to visualization and the work performed with specific devices.

The Spring Situation: Theoretical Foundations and A Priori Analysis

The design of the spring situation takes into consideration the functional elements of mathematical knowledge and problematizes the notion of Cartesian graphs. This situation is based on modeling movement situations using graphs, known as modeling-graph category (MG) (Suárez & Cordero, 2010) which emphasizes the use of a graph and the trend behavior. Therefore, the activities proposed are not expressed as a mathematical problem which has to be solved in an analytical or geometrical way. It is an experimental situation which produces arguments related to the behavior of the trends in the graphs of the resulting functions (Cordero, 2016). It is important to identify that this experimental situation implies moving away from the object-centered perspective because it places variation, the behavior of trends, and the discussion of a system of reference as its arguments and promotes the manifestation of the use of graphs.

Having stated the above, the spring situation addresses properties of the mass-spring-cushioning system, such as trend and asymptotic behavior over time. Therefore, the references to the asymptotic conditions of the system are situational through the behavior and reading of graphs generated by movement sensors (calculator-based ranger [CBR]) (see Figure 3), or from the results of the interaction between the spring and the weight produced by the participants during the workshop.

Figure 3: The experimental setup and the CBR

Source: Zaldívar (2014)

There are three established moments in this situation: (I) maintenance, (II) crisis, and (III) functionality. The first moment questions the participants of the workshop on the movement of the spring when a weight is placed at one end. They were asked to draw this movement. The aim of this moment and the task related to it is to get the first arguments of the participants about movement and the recognition of special features with regards to the phenomenon that was presented.

During the second moment, crisis, the participants were asked if the spring stopped or not, and how it was possible to see this information in their productions. At this moment, they were also asked about variation and system trends. Here, the aim is for students to realize that there might be some aspects of the phenomenon that need to be taken into account, for example if the spring would ever stop. The main goal of the remaining questions was to problematize the first productions of the participants, and determine whether or not they considered non-explicit elements of the phenomenon, such as speed and tendency.

Lastly, the third moment enhances questions and insights about the trend of the movement of the spring and the initial conditions of the graph which represent that movement. It also focuses on its origin and relationship with the movement sensor as a reference point. The objective is to provide, through the use of technology, a new argumentation about the behavior of the phenomenon, along with a justification for a new use of graphs and the need for Cartesian references.

The Thematic Workshop and the Study Group

The spring is the experimental tool for obtaining data, and it was part of the workshop "Movement: I am everywhere, even if you don't see me". There were two movement situations during this workshop: "The spring" and "Build your graph" (Briceño & Cordero, 2012). The aforementioned workshop was run on various occasions in different settings. This allowed to have different groups with particular characteristics. This paper reports the case of a workshop with a study group made up of 9 youngsters between the ages of 15 and 16 (3 female and 6 male) during the First Festival of Communicating Mathematics⁶, which took place in the city of Zacatecas, Mexico. According to the ages of the participants, we can assume that they were secondary school students (In Mexico, secondary school includes students between 13 and 16 years old). This means that it is undeniable that the participants had some knowledge of the topic of graphs and functions, and it is likely that such knowledge may have influenced their interpretations of the task at hand. Nevertheless, our main concern was not to avoid the emergence of scholar arguments in regards to the task, but to analyze how other forms of knowledge appear when scholar restrictions are limited, such as evaluation and the didactical contract. It goes without saying that the social scenario made it possible to have a link of people with scientific knowledge, in which we were more interested in the non-conventional and functional arguments, in case they were to appear.

The analysis took place under a qualitative approach based on participant observation, focused on the productions elaborated by the participants during the workshop. The researcher was responsible for the implementation of the workshops. With the purpose of gathering evidence, the entire workshop session was videotaped. This material, along with the field notes of the researcher in charge and the written productions of the participants, made up such evidence. The videotape of the workshop was fully transcribed. During the process, the analysis of the different sources of data (transcription, field notes and written productions) generated during the session by the group of participants was conducted.

The type of the analysis of data is interpretative and the methodological aspect which guided the gathering of data is related to a theoretical, a priori, analysis in which the initial moments (see "The Spring Situation: Theoretical Foundations and A Priori Analysis") provide a hypothesis about what students might do, and to an a posteriori analysis, which deals with what the students actually did (Buendía & Cordero, 2005). The analysis was internal and was generated based on the comparison between both analyses resulting in a revisited epistemology of categories, which allowed us to give an account of the planned and implemented situation.

Maintenance Moment: Search for Invariants and the Permanence of Things which Vary

The initial activity of the spring situation consisted in drawing the movement of the spring when the weight was placed (see Excerpt l⁷). In a general and recurring way, this task gave rise to gesticulations of the participants. That is, gestures occurred in association with discourse (Kendon, 1987 as cited in Vergel, 2015). For example, we named this "the vertical hand" (see Figure 4).

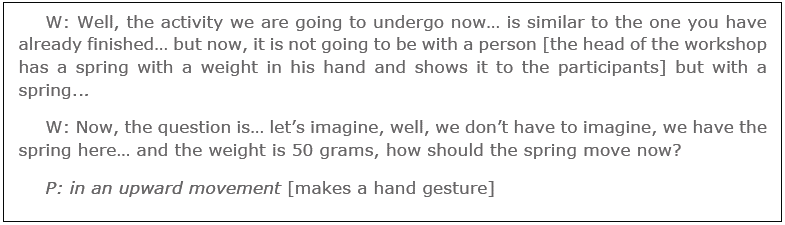

Excerpt 1: Initial question and "vertical hand" as gesticulation

Figure 4: The "vertical hand

Source: Zaldívar (2014)

By this time, the situation generates the first use of the graph of the phenomena through argumentations which use trajectories as the pattern of adjustment. This use is named movement orientation (Use-1). The trajectory does not only refers to the geometric place of the successive positions of the body in motion, but also to the type of interpretation, reading and function of this iconic or gestural pattern in the situation. The functionality (Fu-1) of the graph at this moment of the situation is to indicate direction and sense to the movement, while the form (Fo-1) of the movement is indicated by a certain pattern of adjustment (up and down). The trajectory resignifies space and time in a pattern of adjustment where time is embedded in distance, so variations and trends are not explicitly indicated.

It is noteworthy that at this moment, and with the mentioned use of the graph, there is no explicit reference to the behavior of the system trend. The up and down model seems to establish that the system will stay in perpetual motion. For this reason, it is considered that the argumentation about the behavior of the system caused by the use of graphs is the search for invariants and the permanence of things which vary (Arg-1).

Crisis Moment: Recognition of a Trend Behavior

The workshop case discussed in this paper differs from other workshops in that it introduced the "Build your Graph" activity before the spring situation. As a consequence, the study group already had a precedent on the use of movement sensors. Consequently, the initial question (see Excerpt 1) was modified (see Excerpt 2).

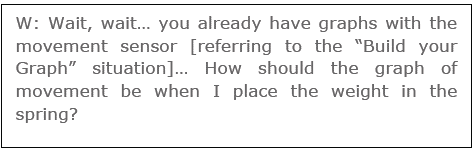

Excerpt 2: Gesture corresponding to the "extended" gesture in the air

Figure 5: "Extended" gesture in the air

Source: Zaldívar, 2014

It is interesting to highlight that the initial gesture of the participant changes when the sensor is considered as reference: she modified the vertical hand and included an extended movement in space (see Figure 5). Therefore, it can be concluded that including the reference point (the sensor as a phenomenological source) gives rise to a crisis in the argumentation used to refer to Use-1 because the visible form of the gesture (up and down) resembles waves, which express a global behavior of the phenomenon. The important thing is how the participant rebuilds the gesture of the vertical hand with a soft sinusoidal movement "extended in the air". Furthermore, the subject identifies that the amplitude of this behavior decreases over time modifying the trend of the system through variation. As a consequence, the use of the graph not only refers to movement orientation but also includes a form of how the behavior of the repetitions is and a way to address variation.

This excerpt gives evidence of the reformulation of the trajectory from the explicit requirement of the analysis of the internal structure of the system in terms of the reference point constituted by the sensor. It also allows for the emergence of other arguments, such as variation and trend, which complement the use. This set of arguments caused a crisis in the form (Fo-1) of the graph to interpret movement, space, and make the pass of time explicit, based on the experience produced by the use of the sensor.

This resignification of the use of graphs involves the complexity of the orientation (see Excerpt 3). The production of the team of participants (see Figure 6) highpoints that there is no "need" for an explicit Cartesian axis, but rather to explain the global behavior of the spring over time (without an explicit axis, see Excerpt 3, P3 line). It is important to highlight that the structure and reading of the movement of the system is based on the use of the given graph as orientation; however, it also integrates the variation and trend elements by adjusting the behavior since it incorporates a way to express that the spring will eventually stop (see Excerpt 3, P7 line), and that movement will not be perpetual. For this purpose, they used a pattern of adjustment named curve.

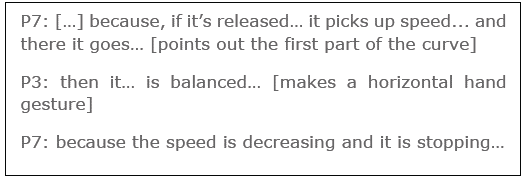

Excerpt 3: Discussion about variation, trend and emergence of the curve

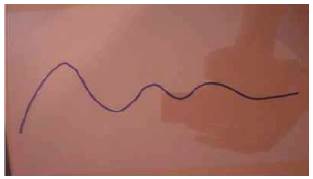

Figure 6: Curve

Despite the fact the orientation is maintained as a use of graphs, other alternative elements were added when the participants were asked if the spring stopped or not. This is expressed in the sensitivity of the characteristics of the element shapes referred to by the participants when they "played" with the visual possibilities in terms of form, size, and descriptions of the representations displayed in their productions (DiSessa et al., 1991; Nemirovsky et al., 1998). An example of this situation is presented in the production of another team (see Excerpt 4 and Figure 7):

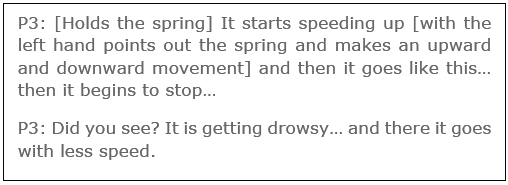

Excerpt 4: Does the spring stop?

Figure 7: The spring begins to stop

Source: Zaldívar (2014)

This team of participants proposed drawing the spring (Figure 8) and, next to it, writing an interpretation of what they understood as the spring gradually stops (Excerpt 4, first comment of P3). They drew several arrows pointing up and others pointing down to suggest direction. The lines become smaller as they move right. When the participants were drawing arrows, their dialog made reference to the size of the lines in a way that indicates that the spring was stopping. They even expressed: "But make them smaller."

Figure 8: Trajectories with trend

Source: Zaldívar (2014)

In this production, orientation was expressed in the trajectory, whereas variation and trend in the "size" of the arrows was expressed in the verbal reference of the phrase "But make them smaller". The passing of time is present in periods characterized by each of the arrows.

There is a resignification of Use-1 by this moment of the activity. This is not only placed in a representational level but also in an argumentative level. This means that deserting the representational level (as trajectory) could be partial; however, there is an actual development of the level of use. The reference point (citing the sensor) and the need to express that the spring stopped, led to the evolution of a more complex Fu-2 of the graph. This is, the graph was used to analyze the variation and trend of the system (Fo-2). This use of the graph was called analysis of the structure (Use-2). It allowed the participants to resignify the argumentation concerning the search for invariants to an explicit argumentation of an asymptotic behavior through the manifestation of the system trend (of the system) (Arg-2), which included the variation and the behavior of the system in a pattern of global adjustment, the curve.

In this way, forcing people's daily lives to anticipate a behavior triggers a crisis in the orientation due to the characteristics of the system. The anticipation is characterized situationally in terms of variation, trend and point of reference. In fact, the second example provides evidence about the resistance in the argumentation of the orientation (at least at a representational level), which permeates the associated use of graphs.

Moment of Functionality: Recognition of an Asymptotic Behavior

Radford (2009) mentioned that time and space cannot be considered as "pure intuitions", but as cultural conceptual categories and structures constituted from a historical and social web. This assertion is confirmed by the evidence presented in the previous section: the interpretations of the participants' productions are not necessarily Cartesian -even if they drew the Cartesian axis-due to the fact that their readings also attended the need of orientation, but added elements that promote a global overview of the behavior. For this reason, the reading and interpretation of graphics cannot be taken as a trivial task.

After the establishment of the maintenance crisis (the search for invariants and the permanence of things that vary), the goal of the following activities was to keep the alternative argumentations elaborated by the study group and described in the former section. Hence, such activities promoted adjustments to the established patterns in order to anticipate the shape of the graph. For this purpose, the Cartesian references were made through local analysis. As a consequence, the arguments of trend focused more on an asymptotic behavior (see Figure 9) based on recognizing that the "straight line" is the graphical behavior which expresses the final form of the curve after a period of time (Excerpt 5, line 11). For example:

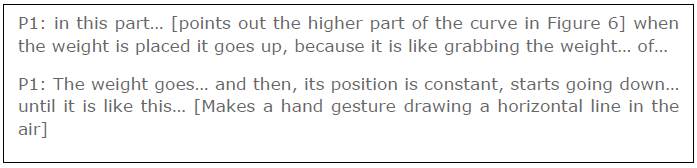

Excerpt 5: The straight line as an asymptotic pattern of adjustment

Figure 9: Asymptotic pattern

Source: Zaldívar (2014)

The straight line as a model of asymptotic trend evolves as a behavior associated to the phenomenon based on the argumentations, but it is also expressed with the "horizontal" hand gestures. The argumentation elaborated is connected to behavior which does not "contain" unusual forms, but remains for a long time. It will also become another graph sometime in the future (Arg-3). This means that asymptotic emerges in terms not just of behavior without abrupt changes, but with trends.

At this moment of alternative maintenance or functionality, the participants discussed the Cartesian elements produced by a local analysis of the initial conditions of the system, which takes the Cartesian origin as a reference point.

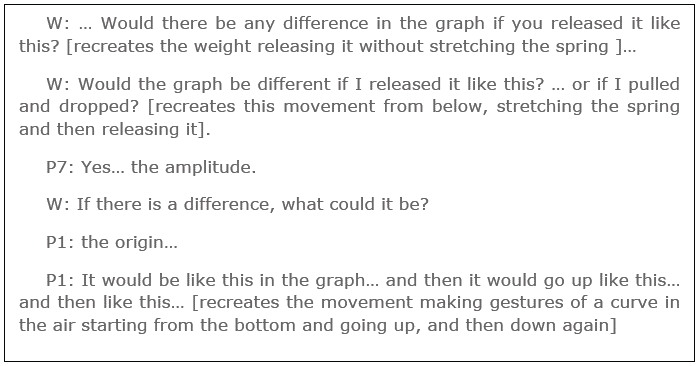

Excerpt 6: Discussion of the initial conditions and the Cartesian origin

The evidence shows a reformulation of the curve. At this moment, the functionality of the use of the graph is to anticipate the behavior (Fu-3). This causes the emergence of other elements, which should be controlled by the participants in order to show the behavior over time and to propose a pattern of adjustment which indicates trend and elements of reference such as the Cartesian origin (Fo-3) such as amplitude, height, trend, and perceived form. Thereupon, the elements of crisis, anticipation and local analysis trigger the use of the graph expressed in the analysis of behavior (Use-3) and cause the emergence of Cartesian elements, which also cause an argumentation of the system referred to as asymptotic behavior (Arg-3).

About the use of graphs and the maintenance and crisis argumentations

The unit on analysis, the use of graphs, revealed functionalities and forms used by the study group to deal with and answer the activities of the spring situation. Furthermore, the analysis showed that the arguments regarding variation, trend and analysis of the reference point (the origin) allowed for the emergence of other functionalities and forms that are not used a priori. The theoretical advance presented in this paper aided in comprehending that the analysis of situational argumentations which lead to crisis in maintenance argumentations sheds light on the development of the use of knowledge through its functionalities and forms. This is an innovative element of the research. People's daily lives, as an auxiliary theoretical element, made it possible to establish a relationship between the use of knowledge in a specific situation and the argumentations that are resignified in the process and how it can be done.

The identification of maintenance crisis or breakups determined the maintenance argumentations. This means that the way the system changed and its trends (Fu-2) can be explained in terms of the cultural forms of daily life used to refer to the behavior of the system through patterns of initial adjustments, specifically between the up and down patterns of adjustments (Fo-1), and the need to figure out the permanence and determine invariants in things which vary. The structure of the pattern of adjustment becomes more complex, giving rise to a form that expresses global-trend (Fo-2). However, the inclusion of the movement sensor as a reference point, opened the possibility of incorporating the Cartesian elements to the curve (Fo-3) and, then, anticipated the behavior of the system (Fu-3). Therefore, the initial argumentations which look for permanence and invariants in things which vary in the system are resignified from the specific institutional experience of the spring situation to an argumentation in which the asymptotic behavior emerges. The result is a trend behavior to a horizontal line.

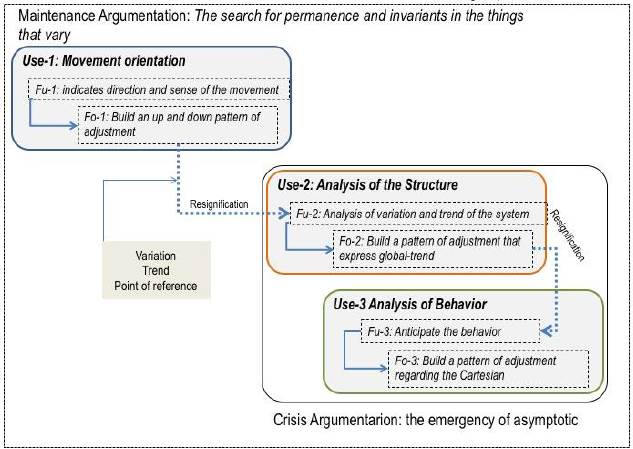

Figure 10 shows a reference framework that synthesizes the results of the use of graphs and the argumentations of people's daily lives regarding the situation of the spring based on the evidence.

Figure 10: Argumentative framework of the spring

Source: Own elaboration

This frame of arguments problematizes the graph from its use in a specific situation. The results highlight the importance of the emergence of argumentations focused on trend, variation and recognition of reference points (such as the origin) to interpret and read the Cartesian graph seen as a mathematical object. People's daily lives, as a theoretical category of the research, suggest that the patterns of adjustment (such as trajectory and curve) could be considered as predecessors and an emergent culture of the Cartesian graph that makes the resignification possible. Subordinating the Cartesian graph to the trajectory and suppressing this in school could continue generating difficulties in the interpretation, reading and construction of graphs, as evidenced in the works of Leinhardt et al., (1990) among others.

The Function of Daily Lives: Recovering the Cultural Forms of Knowledge

The results obtained so far show that daily lives, through M-G, generate argumentations which rely on the comprehension of actions. For this reason, orientation through patterns of adjustment focused on trajectories constitutes the functional base of the uses of the generated graphs. In other words, the evidence suggests that the search for permanence and invariants in things which vary is part of the human activity regarding a signification of the movement that the study group brings into play in a specific situation. That is, it constitutes the matter intended to maintain. However, this function is obscured in the SMD due to the fact that the pair "orientation-trajectory" in scholastic mathematics carries a pejorative connotation and is subordinated to the Cartesian graph. This could be an effect of the centralization in the concept of function, regardless of people's resignification of movement from orientation.

The epistemology of people's daily lives based on the maintenance-crisis mechanism made it possible to problematize people's knowledge and generated resignifications in a progressive and intentional way. Variation, trend, and construction of a reference point are not explicit arguments embedded in the maintenance arguments of daily life. They are constituted and materialized after a crisis. They occur as an emergent culture. It seems as if perception were not enough, and these arguments needed progressive resignifications and the development of more complex tools. In this way, the model of initial permanence becomes a model of asymptotic behavior by problematizing the speed of trend and its variation. Furthermore, the patterns of adjustment become more complex not just from the representational level of moving from trajectories and curves to Cartesian, but from a more visible resignification level. Based on the theoretical considerations, it can be said that the representations give an idea on a figural level; however, the use allows for expressions in an argumentative level. This indicates that the search for permanence and invariants in things which vary through orientation is a cultural form and constitutes the daily lives of people.

Finally, the emphasis placed on "people" responds to the consideration that the didactic task should not be focused only on people in school (school-aged children and youngsters). It should be carried out with everyone, current, and future citizens (Chevallard, 2013). Without any doubt, the interest in the use of mathematical knowledge is not only focused on how youngsters use mathematical knowledge in school settings but also on promoting the understanding of how people use mathematics in working situations, in daily life, or in different settings.
